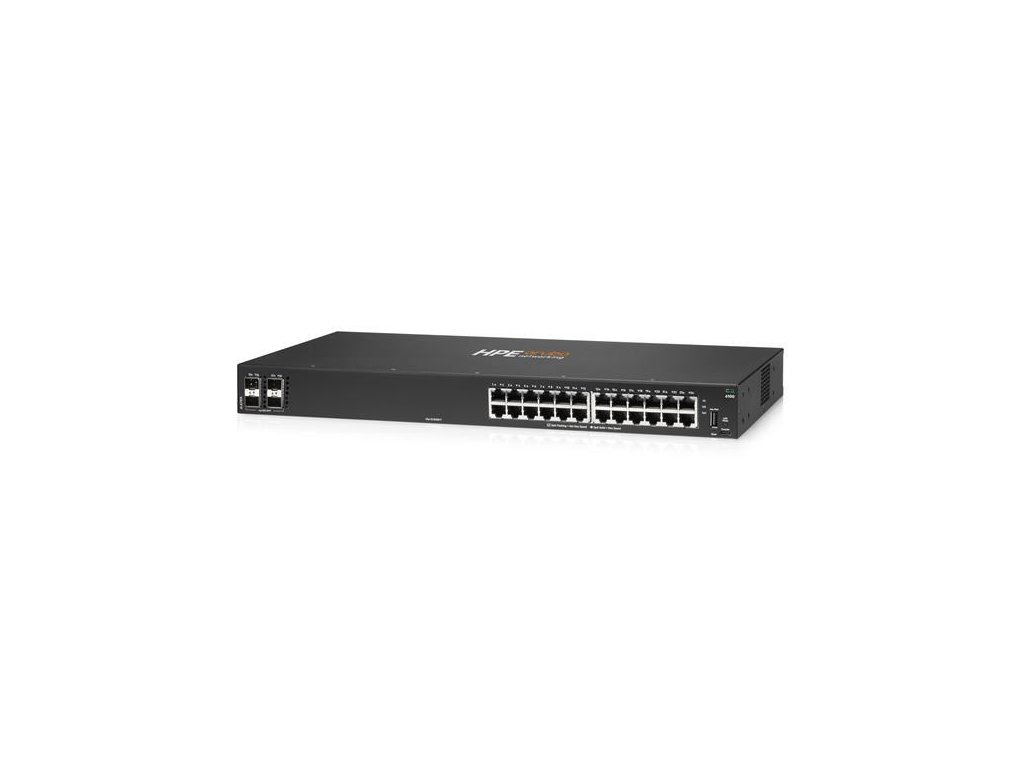

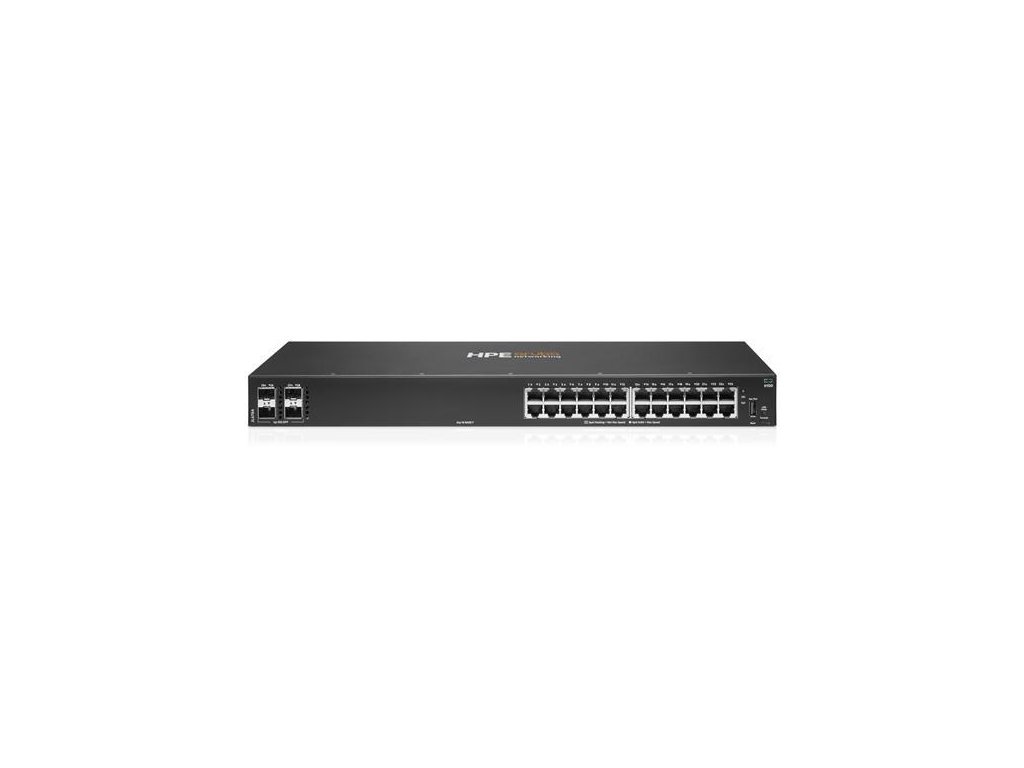

HPE Aruba Networking CX 6100 24G 4SFP+ Switch JL678A RENEW
Kód: ED1881136Detailní popis produktu

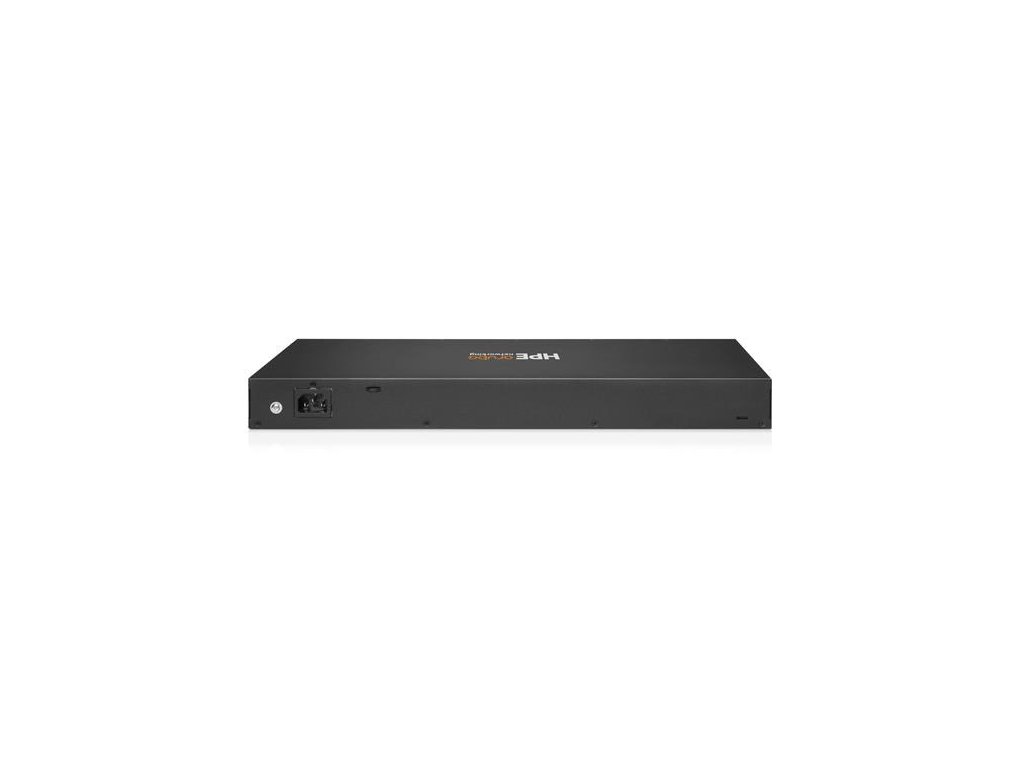

HPE Aruba Networking CX 6100 24G 4SFP+ Switch JL678A RENEW
| Aruba 6100 24G 4SFP+ Switch (JL678A) |
Electrical Characteristics | |
Frequency | 50 / 60 Hz |
AC Voltage | 100-127 VAC / 200-240 VAC |
Current | 0.6 A / 0.4 A |
Power Consumption (230 VAC) | Idle: 15.4W Max Power (w/o PoE): 33W |
Safety | |
| UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014 |
Emissions | |
| VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
Lasers | |
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
Immunity | |
Generic | CISPR 24 / CISPR 35 |
EN | EN 55024:2010 / EN 55035:2017 |
ESD | IEC 61000-4-2 |
Radiated | IEC 61000-4-3 |
EFT/Burst | IEC 61000-4-4 |
Surge | IEC 61000-4-5 |
Conducted | IEC 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | IEC 61000-4-11 |
Harmonics | EN 61000-3-2, IEC 61000-3-2 |
Flicker | EN 61000-3-3, IEC 61000-3-3 |
Mounting and Enclosure | |
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |

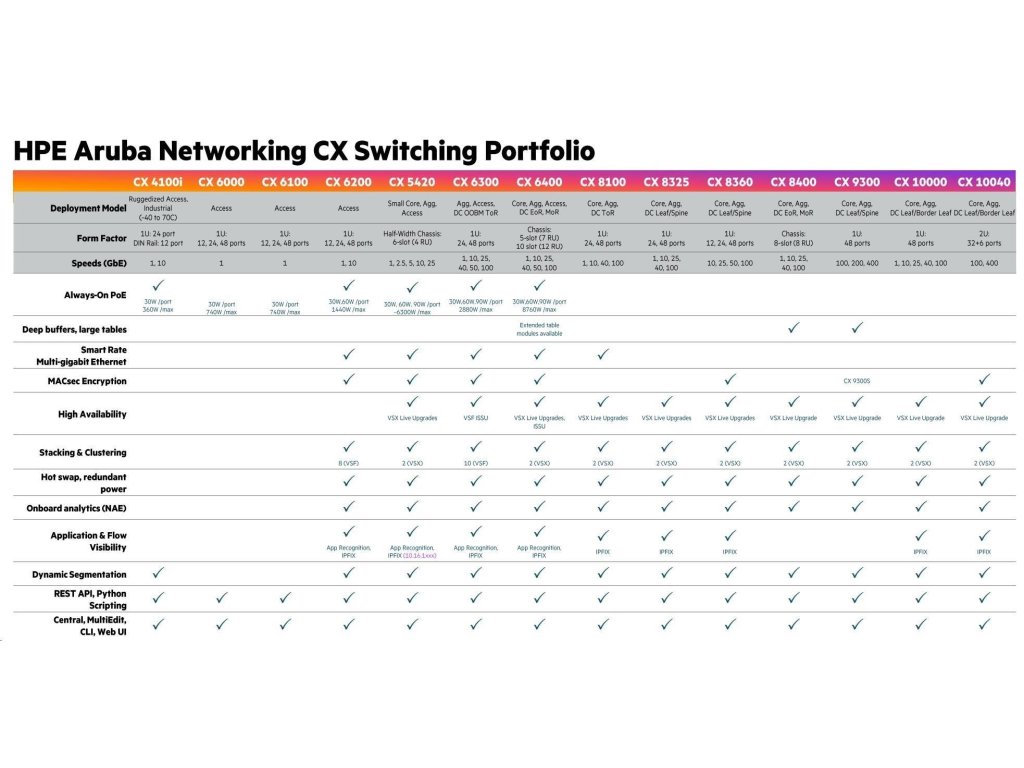

Standards And Protocols (Applies to all products in series)
|
Kód produktu: ED1881136
Part no.: JL678AR#ABB
EAN: 1881136
Doplňkové parametry
Kategorie: | Datová připojení svorky konektory boxy |
---|---|
Provedení: | Desktop, Rack mounted 19" |
Funkce: | L2, L3 |
Technologie: | Gigabit Ethernet + 10 GbE porty |
Počet portů LAN: | 24 |
Podporované standardy PoE: | Žádný |
Počet SFP portů: | 4 |
Počet SFP+ portů: | 4 |
Ventilátor: | Ano |
Maximální počet portů: | 28 |
Počet USB 2.0: | 2 |
Přenosová rychlost LAN (Mb/s): | 95 |
Vlastnosti switche: | Rozšiřitelnost |
Management: | SNMP/RMON |
